**CALL 360-794-9996 FOR PRICE & AVAILABILITY**

 Model BSM226RF – 220 Volt Single Phase

S1 Control
Simple dial controls for ease of use.

Spotwelder Features:

• Foot-operated rocker arm resistance spotwelder (manual)
• Arms adjust 15″ to 29″
• Uses standard Morse #1 tapered tips
• Water-cooled transformer, arms and tip holders
• 220 1PH electrics
• Dimensions: 40″L x 12″W x 50″H
• Weight: 300 lbs. (425 lbs. crated)
• 25 KVA Capacity: 2 pcs 14 gauge
• Custom lower arm design allows welding tubes as small as 2″ diameter and no hoses to interfere with parts
• Optional ProCool II coolant recirculator available

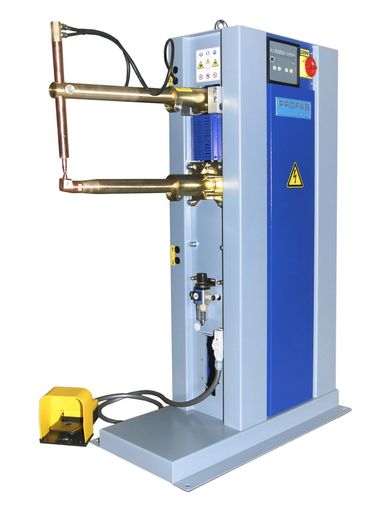

 Model BSP226PX and BSP236PX Spot Welders – Dual Voltage 220/440 Volt Single Phase

PX1700 Plus Control
Digital touch pad controls squeeze time, power ramp, weld time, weld power, pule welding and auto repeat. (Option for second foot pedal available.) Allows for precise weld control adjustment for perfect welds and increased tip life.

Spotwelder Features:

• Air operated rocker arm resistance spotwelder with electric foot pedal control
• Arms adjust 15″ to 29″
• Uses standard Morse #1 tapered tips
• Water-cooled transformer, arms and tip holders
• Air regulator with moisture trap
• 220 or 440 volt 1PH electrics (must specify)
• Dimensions: 40″L x 12″W x 50″H
• Weight: 300 lbs. (425 lbs. crated)
• 25 KVA or 35 KVA Capacity: 2 pcs 14 gauge
• Custom lower arm design allows welding tubes as small as 2″ diameter and no hoses to interfere with parts
• Optional ProCool II coolant recirculator available

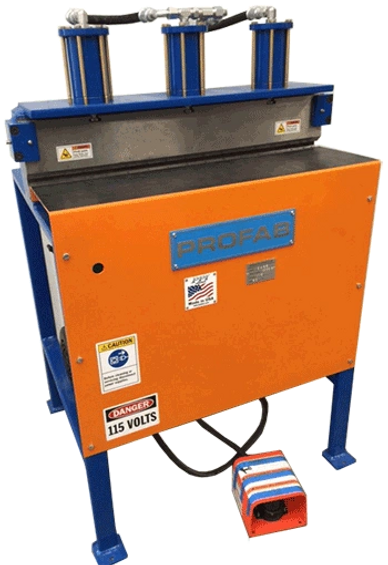

 This machine provides any shop with a complete work center for fabrication fittings. One side of the dual purpose bending die bends (approx. 7/16in), and punches the cheeks for Button Punch Snap Lock 90-degree fittings. Flip the die over and you have a 20 gauge Power Cheek Bender for making right-angle flanges for Pittsburgh fittings. Step gauge built into the die allows for 1/4in and 3/8in 90 degree bend.

 Specifications

• Powered Cleatbender
• 220 Volt, Single-Phase Electrics
• Self-contained reliable hydraulic power unit
• Open Ends
• CM2-30 (30″ bend length)
• 20 gauge capacity

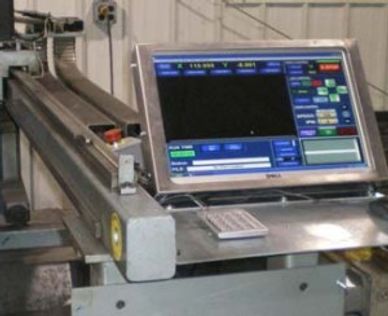

 Production Products Inc. offers the PPI-PC-CNC for CNC plasma controller retrofits and replacement services for HVAC sheet metal plasma cutting tables. Their System is PC-based for use with any standard Windows PC and replaces old hardware-based CNC controls.

Replacement parts and repairs for an older plasma CNC controller can run many thousands of dollars. Instead of spending big money on your old control, consider replacing when you have trouble or – better yet – before trouble occurs.

New drive systems with precision electronic motors and CNC PC based control result in tighter and cleaner cut edges.
