Pittsburgh Sheet Metal Equipment in Washington

14, 16, 18GA PITTSBURGH SHEET METAL MACHINE

Some of our Pittsburgh sheet metal machine equipment in Washington

The 14, 16 and 18 gauge Pittsburgh sheet metal machines have 7 forming stations with two forming positions. One inboard position forms the Pittsburgh lock, and one auxiliary or outboard position has the capability of forming 1 of 8 different profiles depending on which auxiliary roll set is ordered.

MACHINE SPECIFICATIONS

MODEL 14: Forming stations: 7, Capacity: 14 - 18 gauge, Depth of Pocket: 1/2", Hammer Over-Edge Adjustability: 3/8", Forming Speed: 35 FPM, Motor: 5 HP, 1800 RPM, Voltage: 230V/460V, Amps: 15.2/7.6, Phases: 3, Drive: Double V-Belt, Dimensions: 58-1/2"L x 24"W x 41"H, Weight: 750 lbs.

MODEL 16: Forming stations: 7, Capacity: 16 - 20 gauge, Depth of Pocket: 1/2", Hammer Over-Edge Adjustability: 3/8", Forming Speed: 40 - 45 FPM, Motor: 3 HP, 3600 RPM, Voltage: 230V/460V, Amps: 15.2/7.6, Phases: 3, Drive: Double V-Belt, Dimensions: 58-1/2"L x 24"W x 41"H, Weight: 750 lbs.

MODEL 18: Forming stations: 7, Capacity: 18 - 22 gauge, Depth of Pocket: 3/8", Hammer Over-Edge Adjustability: 3/8", Forming Speed: 40 - 45 FPM, Motor: 2 HP, 3600 RPM, Voltage: 230V/460V, Amps: 15.2/7.6, Phases: 3, Drive: Double V-Belt, Dimensions: 58-1/2"L x 24"W x 41"H, Weight: 750 lbs.

PRODUCT SPECIFICATIONS

Pittsburgh Lock Rolls: Capacity: 22 - 28 gauge, Approx. Material Used: 1", Size: 5/16" Pocket

Double Seam Rolls (TYPE S): Capacity: 22 - 28 gauge, Approx. Material Used: 1-1/8", Size: 3/8" Seam

Double Seam Rolls (TYPE L): Capacity: 16 - 22 gauge, Approx. Material Used: 1-1/4", Size: 7/16" Seam

Drive Cleat Rolls: Capacity: 20 - 26 gauge, Approx. Material Used: 2-1/8", Size: 1-1/8" Width

Standing Seam Rolls: Capacity: 16 - 20 gauge, Approx. Material Used: 2-1/8", Size: 3/4" Height

Right Angle Flange Rolls: Capacity: 16 - 24 gauge, Approx. Material Used: Up to 7/16", Size: Up to 7/16" Height

Hem Rolls: Capacity: 20 - 24 gauge, Approx. Material Used: 1/4", 3/8", 1/2", Size: 1/4", 38", 1/2"

COMBINATION 3 IN 1 ROLLS WITH SPECIAL GUIDE

 Right Angle Flange: Capacity: 22 - 26 gauge, Approx. Material Used: 1/2", Size: 1/2" Height

Standing Seam: Capacity: 22 - 26 gauge, Approx. Material Used: 1-3/4", Size: 5/8" Seam

T-Connection: Capacity: 22 - 26 gauge, Approx. Material Used: 1-1/4", Size: 7/16" Seam

20GA PITTSBURGH SHEET METAL MACHINE

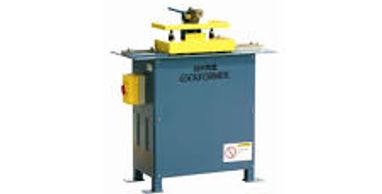

Pittsburgh Sheet Metal Machine

The Model 20 and Model 20 SuperSpeed Pittsburgh sheet metal machines have 5 forming stations with 2 forming positions. One inboard forming position forms the Pittsburgh lock and one auxiliary or outboard forming position has the capability of forming 1 of 3 different profiles.  Forming speeds are listed in the chart above. Standard with Lockformer® quality construction, these machines have motors; high precision needle-type bearings; heavy ¾” chassis plate; case hardened and ground roll shafts; and arc welded steel stands protected with Lockformer’s top-quality primer and paint finish.  Alemite grease fittings are easily accessible from a central lubrication panel.

MACHINE SPECIFICATIONS

MODEL 20 SUPER SPEED: Capacity: 20 - 26 gauge, Depth of Pocket: 5/16", Hammer Over-edge Adjustability: 3/8", Forming Speed: 75 FPM, Drive: Matched Double V-Belt, Motor: 2 HP, 1800 RPM (Other 3 HP motors available), Voltages: 230V/460V, Amps: 6/3, Phases: 3, Dimensions: 48"L x 24"W x 42"H, Weight: 450 lbs.

MODEL 20: Capacity: 20 - 26 gauge, Depth of Pocket: 5/16", Hammer Over-edge Adjustability: 3/8", Forming Speed: 25 FPM, Drive: V-Belt, Motor: 3/4 HP 1800 RPM, Voltages: 115V/230V, Amps: 10/5, Phases: 1, Dimensions: 36"L 16.5"W x 41"H, Weight: 450 lbs.

An optional Auto-Guide Power Flanger attachment is available for the Model 20 and Model 20 Super Speed Gauge Pittsburgh machines. The flanging attachment follows any edge straight or irregular while forming a 7/32 (outside) flange height.  Just turn up a starting flange in the table slot, feed materials into the rolls and let go.  Handles radii down to 3-1/4” or 1-3/8” manually at speeds of 16-18 fpm.

PRODUCT SPECIFICATIONS

Double Seam Rolls: Capacity: 20 - 26 gauge, Approx. Material Used: 1", Size: 3/8" Seam.

Drive Cleat Rolls: Capacity: 20 - 26 gauge, Approx. Material Used: 2-1/8", Size: 1-1/8" Width.

Right Angle Flange Rolls: Capacity: 20 - 26 gauge, Approx. Material Used: Up to 3/8", Size: Up to 3/8" Height.

24GA PITTSBURGH SHEET METAL MACHINE

Pittsburgh Sheet Metal Machine



The 24 gauge Pittsburgh sheet metal machine has 5 forming stations and 1 inboard forming position. The forming chassis is constructed of 1/2″ steel plate. This machine is compact and lightweight and can easily be taken to the job site! An optional Auto-Guide Power Flanger attachment is available for the 24 gauge Pittsburgh machine. The flanging attachment follows any edge straight of irregular while forming a 7/32 (outside) flange height. Just turn up a starting flange in the table slot, feed materials into the rolls and let go. Handles radii down to 3.25″ or 1.375″ manually at speeds of 16 – 18 fpm.

MACHINE SPECIFICATIONS

MODEL 24: Capacity: 24 - 28 gauge, Depth of Socket: 5/16" (Uses about 1" of material), Hammer Over-edge Adjustibility: Up to 3/8" Width, Speed: 30 - 35 FPM, Motor: 1 or 3 HP available, Voltage:115V/1Ph/60Hz (7.2 Amp) Standard 230V/1Ph/60Hz (3.6 Amp) Optional 3 PHASE NOT AVAILABLE, Dimensions: 30"L x 13.5"W x 20"H, Weight:175 lbs.

VULCANPLUS CUTTING SYSTEM

VulcanPlus Cutting System

A superior product brand because it has earned the reputation for unrivaled quality, performance and value. Renowned for its design and CAD to CAM solution, the VulcanPlus outperforms other HVAC Plasma cutting systems..state-of-the-art in every detail and component.

Software: Vulcan Windows 10 HVAC

Computer System: Office PC with 19″ Monitor & Printer
Machine Control: Lockformer B&R Indutrtial Grade cutting table controller with 15″ color system graphic industrial touch screen, Digital Drive devices, Manual Speed increase/decrease override, Kerf compensation, Auto home sense set 0/0 automatically, Automatic corner slow down, Brushless AC servo motors with resolver feedback, Remote safety stop swithces and current limiting drives for safety.

Cutting Unit: Standard: PowerMax 45 Optional: PowerMax 65
Cutting Area: 5’x10′ Standard – 5’x20′, 6’x20′ & 6’x20′ Optional, Hypertherm Powermax 45 Plasma Unit
Cutting Capacity: PowerMax 45: 3/8″ Mild Steel, PowerMax 65: 1/2″ Mild Steel

Table Capacity: 1,000 pounds (5’x10′ model)
Positioning Speed: 3,000 IPM Max.

Options: Upgrade to Powermax 65 available, Vulcan HVAC Software, office computer and (2) inkjet printers available, VulcanPlus Startup Assistance & Training – 3 Day Package available. Additional days for on-site assistance or training time are available at Seller’s usual and customary daily service rates plus travel & living expenses.

Cutting Speed: Based on Material

MACHINE WEIGHT: 2,700 pounds

VULCAN 1600 WATERJET

Vulcan 1600 Waterjet

The Vulcan 1600 WJ is designed with traditional Lockformer quality and reliability, to eliminate the duct liner bottleneck in your shop while reducing the labor associated with this process. HVAC contractors rely on Vulcan’s insulation cutting software and table to increase shop productivity, reduce waste, and improve their bottom line.

Software: Vulcan Windows 10 HVAC
Computer System: Office PC with 19″ Monitor & Printer
Machine Control: 7590 CNC-TS 15″ Color Graphic Industrial Touch Screen
Cutting Unit: KMT SL-VI 15HP Pump with Pneumatic Valve Cutting Head

Cutting Area: Standard: 5’x10′
Optional: 5’x20′
Cutting Capacity: Up to 4 inch Fiberglass or Up to 2″ Foam Insulation
Positioning Speed: 3,000 IPM Max.
Cutting Speed: Based on Material

VULCAN LASER-MAX 1.5

Vulcan Laser-Max 1.5

The next evolution in the Vulcan cutting systems is the Laser-Max 1.5. With minimal heat affected zone on the cut edge, the parts coming off the machine will cause less wear to downstream fabrication equipment. Minimal kerf combined with 4-axis controls enable the cutting of intricate patterns. Laser cutting uses less heat – edges are not hardened leading to less wear and tear on other machinery. Exclusive Patent – pending technology allows operator to access parts directly from the table and eliminates need for a pallet shuttle system. Coil feeding made easy as full table enclosure is eliminated –  Laser-Max 1.5 can be sheet or coil fed. Running speed up to 1,400 inches/minute on thinner materials (26ga). All rack and pinion 4-axis (2-y, 1-x, 1-z) controlled. Z is servo driven with automatic torch height.

Software: Vulcan Windows 7/8/10 HVAC

Computer System: Office PC with monitor and 2 printers

Machine Control: Mach 3 & Color Graphic Industrial HMI

CAM Interface: Compatible with Trimble FabShop, Autodesk CAM MEP, PractiCAM and others. Please inquire regarding any CAM softwares in question.

Cutting Unit: Standard: IPG 0.75 KW, Optional: 1.0 kW, Optional: 1.5 kW, Optional: 2.0 kW

Cutting Area: Standard: 5’ x 10’, Optional: 6’ x 10’, Optional: 5’ x 20’, Optional: 6’ x 20’

Cutting Capacity: 0.120″ or 0.134″ Mild Steel, Cutting capacity depending on laser resonator selected

Table Capacity: 350 lbs

Positioning Speed: 1,400 IPM MAX

TRIPLEX CLEATFORMER

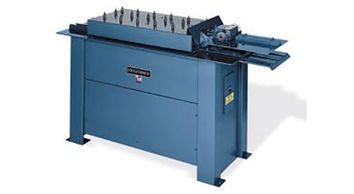

Triplex Cleatformer



‘S’ cleats and more. A flexible Lockformer, designed for super high productivity of inboard cleats. The triplex design has two inboard and two outboard forming positions allowing bearing support on both sides of the profile. The top plate and roll assembly are split into three zones with each having special design details like knurled rolls and angled guides to keep material moving through the machine in a straight line. These zones also can be adjusted by the operator to meet the requirements of a wide variety of gauges. With 9 forming stations, the Triplex Cleatformer can form 20-28 gauge sheet metal into ‘S’ and drive cleats on the inboard forming positions and up to 12 auxiliary roll set profiles on the outboard forming positions at speeds averaging 100 fpm. Standard with Lockformer quality construction, this machine has a Baldor motor; high precision needle-type bearings; heavy 3/4″ chassis plate; case-hardened and ground roll shafts; and an arc-welded steel stand protected with Lockformer’s top-quality primer and paint finish.

MACHINE SPECIFICATIONS

Dimensions (L x W x H): 60″ x 24″ x 40″

Table Height: 32-1/2"

Shipping Weight: 850 pounds

Forming Speed: 100fpm

Motor: 5 HP / 1800 RPM

Voltage: 230 / 460 3 phases

Forming Stations:

ADDITIONAL SPECIFICATIONS

Cleat Type: "S" Cleat Drive Cleat

Capacity: 22 - 28 gauge 20 - 28 gauge

Pocket Depth: 1-1/16" 1-1/16"

*Drive Cleat width is: 1-1/8"*

BUTTON PUNCH SNAP LOCK

Button Punch Snap Lock

The Button Punch Snap Lock Machine forms a two-piece seam that greatly simplifies ductwork assembly.  The male seam is a button, the female seam is a lock, and the two snap together for a flush corner.  This machine can form 20 to 26-gauge sheet metal into female locks on the inboard and button punched right angle flanges on outboard rolls at speeds of 60-65 fpm, and are available in seven and nine forming station machines.  Not only do these locks assemble twice as fast as traditional methods, but because the two pieces nest, they are easier to transport too. Standard with Lockformer quality construction, these machines have motors; high precision needle-type bearings; heavy 3/4” chassis plate; case-hardened and ground roll shafts; and arc-welded steel stands protected with Lockformer’s top-quality primer and paint finish.  Alternate fittings are easily accessible from a main transmission bearing lubrication panel.

MACHINE SPECIFICATIONS

Forming Stations: 9, Capacity: 20 - 26 gauge, Forming Speed: 60 - 65 FPM, Motor: 3 hp, Voltages: 230/3/60 (9 Amp) Standard 460/3/60 (4.5 Amp) Optional 575/3/60 (3.6 Amp) Optional 230/1/60 (16 Amp) Optional, Horizontal Roll: 4", Vertical Roll Centers: 2.5", Shaft Diameter: 1", Dimensions: 58.5"L x 24"W x 41"H, Weight: 725 lbs.

BUTTON PUNCH CHEEK BENDER

Button Punch Cheek Bender

This machine provides any shop with a complete work center for fabricating fittings. One side of the dual purpose bending die bends and punches the cheeks for Button Punch Snap Lock 90-degree fittings. Flip the die over and you have a 20 gauge Power Cheek Bender for making right-angle flanges for Pittsburgh fittings. Self contained hydraulic system.

MACHINE SPECIFICATIONS

Capacity: 20 gauge MAX, Depth of Pocket/Size: Variable, Speed: N/A, Motor: 1 1/2 hp, Voltages: 110/1/60 (18 Amp) Standard 230/1/60 (9 Amp) Optional 380/3/50 (2.9 Amp) Optional 230/3/60 (4.7 Amp) Optional 460/3/60 (2.4 Amp) Optional, Drive: Hydraulic, Stand: Arc-welded steel with metallic blue finish, Dimensions: 24"L x 28"W x 34"H, Weight: 200 lbs.

BUTTON PUNCH SNAPLOCK FLANGER

Button Punch Snaplock Flanger

Roll single-direction curves down to a minimum radius of 3-1/2” inside or a 5” outside radius, almost automatically.  These punched right-angle flanged curves fit perfectly in the receiver formed on the Lockformer 20 gauge or the 24 gauge Button Punch Snap Lock.

MACHINE SPECIFICATIONS

Capacity: 20 - 28 gauge, Flange Height: 7/16", Flanging Speed: 18 FPM, Motor: 3 hp4 hp, Voltages: 115/1/60 (13.8 Amp) Standard 30/1/60 (6.9 Amp) Optional (3 Phase not available), Dimensions: 24"L x 24"W x 34"H, Weight: 250 lbs.

STANDING S CLEAT MACHINE

Standing S Cleat Machine

In just one pass, form a shape that combines a conventional “S” cleat with a standing seam for greater strength and rigidity. This seam is adaptable in fabrication of large trunk or branch lines in industrial and commercial heating and ventilating ducts. Included are double-extended auxiliary shafts for a variety of choices for optional rollform tooling. The design integrity and quality construction of its 10-station configuration will provide years of trouble-free service.

MACHINE SPECIFICATIONS

Forming Stations: 10, Capacity: 20 - 26 gauge, Depth of Pocket: 1-1/8", Height of "S" Cleat: 1", Horizontal Roll Centers: 6", Vertical Roll Centers: 3-1/2", Shaft Diameter: 1-1/8", Forming Speed: 60 - 70 FPM, Motor: 5 HP, Voltage: 230V/3Ph/60Hz (15.2 Amp) Standard 460V/3Ph/60Hz (7.6 Amp) Optional (Other voltages available upon request-SINGLE PHASE AVAILABLE), Dimensions: 84"L x 30"W x 37"H, Weight: 1,700 lbs.

6016 BEADER

6016 Beader

Beading is a cost-conscious way to stiffen ductwork. It is 5 times faster than the old method, cross-braking, and uses only one operator. Designed to meet the requirements of SMACNA, this ductwork prep machine produces 5 beads on 12″ centers and is adjustable to 3/16″ depth. A convenient handwheel raises or lowers, the top roll assembly to set depth of bead. The top and bottom rollers are kept parallel with adjustable screw and pillow block assemblies connected by a link chain. Individual collared beading rolls are replaceable. Feed rolls are self-compensating over the entire gauge range. Double entrance feed bars are provided so that material can be gauged from either left or right side. Standard with Lockformer quality construction, this machine has a Baldor motor; high precision needle-type bearings; turned, ground, and polished steel forming rolls and roll shafts; and an arc-welded steel stand protected with Lockformer’s top-quality primer and paint finish. Lubrication fittings are located on each bearing.

MACHINE SPECIFICATIONS

Dimensions (L x W x H):  42-3/4″ x 70″ x 32-3/16″, Weight: 1650 pounds, Motor: 1 HP / 1800 RPM (single phase), Voltage:  115/1/60 (16 Amp) Standard 208/1/60 (9 Amp) Optional) 230/1/60 (8 Amp) Optional) (3 Phase not available), Capacity: 16 gauge maximum (5' width)

EASY EDGER

Easy Edger

Turn perfect flanges on elbows or other curved fittings as fast as you can notch them

  • Available with or without stand
  • No gauge to set

20 gauge MAX

Depth of pocket: ¼” flange

Dimensions: 4”W and 18”H (with stand)

Weight: 23 lbs

Other: Optional Stand

TDC ROLL FORMER

TDC Roll Former

The TDC V Rollformer has 12 forming stations and produces TDC™ flanges at speeds of up to 50 feet per minute. This is the only transverse duct connector machine on the market certified to comply with SMACNA Duct Connector Standard (DCS) T-25a based on actual laboratory tests across the full range of water gauges.

Famous Lockformer® quality construction with an industrial motor; high precision bearings; heavy duty three zone chassis; plate head construction; hardened and ground roll shafts all protected with Lockformer®’s top-quality primer and paint finish.  Optional rolls are available for TDC Clip production.

MACHINE SPECIFICATIONS

Capacity: 18 - 24 gauge for TDC -22 gauge for optional Clip Rolls, Depth of Pocket: 1-7/8" for TDC -2-1/8" for Clip, Speed: 50 FPM, Motor7.5 HP, Voltage: 230V/3Ph/60Hz (22 Amp) Standard 208V/3Ph/60Hz (24 Amp) Optional 460V/3Ph/60Hz (11 Amp) Optional 575V/3Ph/60Hz (9 Amp) Optional, Dimensions: 137"L x 38"W x 48"H, Weight: 2,800 lbs.

TDC NOTCHER

TDC Notcher

TDC NOTCHER comes standard with 5 notching heads. The Lockformer TDC NOTCHER will gang notch duct blanks as much as 6 times faster than notching by hand. The Hydraulic powered notch units have individual shutoff valves for positive control. Notch units are designed for fast and easy repositioning. A built in locking handles and a measuring scale makes notch location setup a simple task. Notch depth is also adjustable. The TDC NOTCHER has a thickness capacity of 16 ga. / 1,6 mm in galvanized mild steel.

MACHINE SPECIFICATIONS

Capacity: 16 gauge Mild Steel (10 feet), Depth of Pocket: 2-7/16" for TDC notch -1-1/2" for "V" notch, Motor: 3 HP, Voltages: 230V/3Ph/60Hz (9 Amp) Standard 208V/3Ph/60Hz (10 Amp) Optional 460V/3Ph/60Hz (4.5 Amp) Optional 575V/3Ph/60Hz (3.6 Amp) Optional (SINGLE PHASE NOT AVAILABLE), Dimensions: 122"L x 24"W x 52"H, Weight: 800 lbs.

AUTO-GUIDED FLANGER

Auto-Guided Flanger

These ductwork prep machines automatically follow any edge –curved or straight.  Use the convenient table slot to turn up a “starting flange” and let it go!  A calibrated dial can be set for radii as small as 3-1/4” (or 2” when auto-guide is de-activated).  Automatically flange 16 to 24 gauge material at speeds of 18 fpm.  A non-releasing type head is suitable for open-end fittings, straight and irregular curves. Standard with Lockformer® quality construction, this machine has a motor, and an arc-welded steel stand protected with Lockformer’s top-quality primer and paint finish. The Auto-Guide Flanging Machine is covered by the standard limited warranty described in detail in the Seller’s terms and conditions of sale for a period of six (6) months.

MACHINE SPECIFICATIONS

Capacity: 16 - 24 gauge, Outside Flange Height: 3/8" - 1/4", Flanging Speed: 18 FPM, Motor: 3 hp 1800RPM 4hp 1800RPM, Voltage: 115/1/60 (13.8 Amp) 230/1/60 (6.9 Amp) (3 Phase not available), Dimensions: 24”L x 24”W x 34”H, Ship Weight: 225 lbs.
