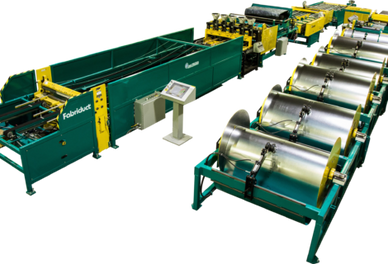

PRO-FABRIDUCT

pro fabriduct iowa precision mestek

  • Most economical footprint in the world.
  • Fastest feed rate in the industry.
  • E-Z load coil drum assemblies for quick spool changeover (no lifting devises to add to your lift truck).
  • Soft start motors for long life.
  • Hydraulically powered gear driven decoiler system on each coil station with low friction UHMW shaft pockets, available in both 12,000 & 20,000 lb capacities
  • Multi-Grid Skate Roll System for support of every coil station.
  • Powered Multi Station Coil Select for hands free feeding material into the coil processor.
  • Industrial designed solid block die construction for a 25 year die life.
  • The industry’s toughest and most stable frames. Structured steel tube construction-maintaining structural strength will allow accessibility for maintenance, clean up and service.
  • Full width contact feed rolls for positive accurate movement.
  • Engineered with heavy-duty left/right synchronization to stabilize cutting action and give
  • the lowest moving mass, thereby reducing shock and vibration during the cutting stroke.
  • Quiet operating system with a sound level less than 67 DB.
  • Shear head squaring system designed for tool free adjustment.
  • State of the art control designed, manufactured and serviced by Iowa Precision.
  • Industrial, solid-state PLC touch screen operating system controller with storage recall.
  • Tie Rod hole punching comes standard with both 5/16 and 7/16 punches.
  • Swing Knife Insulation cutting system for both fiber and non-fibrous insulation.
  • Solid state B & R controls with industrial quality/reliability; operator intuitive interface and graphics.
  • Servo driven high speed wrap brake.
  • Remote diagnostics and fast 24 hour service.

AVAILABLE OPTIONS:  In-Line Plasma Cutting / PLC controlled Tie-Rod Hole Punching / Cold Sealant System / Hot Melt Sealant System / Welded Duct Companion Flange / Coil Line Download

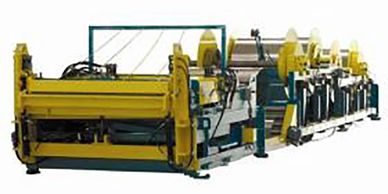

PRO-DUCTOMATIC FRONT-END COIL LINE

pro ductomatic front end coil line iowa precision mestek

Every Pro-Ductomatic Front-End Coil Line System has been designed to maximize your return on investment by delivering years of reliable production. Designed for Light to Heavy Duty Commercial applications. Plus, we always design in the capability to add on to make this system a complete Automated Duct Line.

Pro-Ductomatic Front-End Coil Line System provides you with the fastest feed rate in the industry and the most economical footprint in the world. This front-end system includes the highest quality components on:

  • E-Z load coil drum assemblies for quick coil changeover (no lifting devises to add to your lift truck).
  • Soft start motors for long life.
  • Hydraulically powered gear driven decoiler system on each coil station with low friction UHMW shaft pockets available in both 12,000 & 20,000 lb capacities
  • Multi-Grid Skate Roll System for support of every coil station.
  • Powered Multi Station Coil Select for hands free material feeding into the Pro-Ductomatic Front-End Coil Line System .
  • Industrial designed solid block die construction for a 25 year die life.
  • The industry’s toughest and most stable frames. Structured steel tube construction-maintaining structural strength will allow accessibility for maintenance, clean up and service.
  • Full width contact feed rolls for positive accurate movement.
  • Engineered with heavy-duty left/right synchronization to stabilize cutting action and give the lowest moving mass, thereby reducing shock and vibration during the cutting stroke.
  • Quiet operating system with a sound level less than 67 DB.
  • Shear head squaring system designed for tool free adjustment.
  • State of the art control designed, manufactured and serviced by Iowa Precision Industries.
  • Industrial, solid-state PLC touch screen operating system controller with storage recall.
  • Remote self-diagnostics.

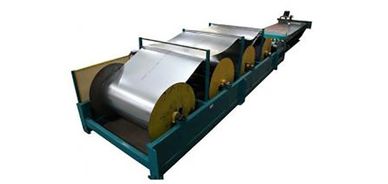

PRO-DUCTOMATIC RESIDENTIAL COIL LINE

pro ductomatic residential coil line iowa precision mestek

Every Pro-Ductomatic Residential Coil Line System has been designed to maximize your return on investment by delivering years of reliable production. Designed for residential duct applications. Pro-Ductomatic Residential Coil Line System provides you with the fastest feed rate in the industry and the most economical footprint in the world. This automated duct line system includes the highest quality components on:

  • Soft start motors for long life.
  • Mandrel Type Uncoiler in 10,000 lb capacity with traversing coil car
  • Industrial designed solid block die construction for a 25 year die life.
  • The industry’s toughest and most stable frames. Structured steel tube construction-maintaining structural strength will allow accessibility for maintenance, clean up and service.
  • In-Line Crossbrake roller for complete residential duct sections coming off the coil line
  • Full width contact feed rolls for positive accurate movement.
  • Engineered with heavy-duty left/right synchronization to stabilize cutting action and give the lowest moving mass, thereby reducing shock and vibration during the cutting stroke.
  • Quiet operating system with a sound level less than 67 DB.
  • Shear head squaring system designed for tool free adjustment.
  • Transfer Tables, Roll Formers and L-Brake arranged for U- or L- line configuration
  • State of the art control designed, manufactured and serviced by Iowa Precision Industries.
  • Industrial, solid-state PLC touch screen operating system controller with storage recall.
  • Remote self-diagnostics.

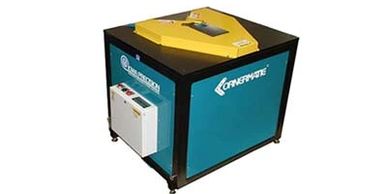

CORNERMATIC PLUS

cornermatic plus iowa precision mestek

The CORNERMATIC PLUS® was specifically designed to address the difficulty with inserting corners into some styles of fitting ductwork. It joins other world- wide successful Cornermatics such as the Dual-Head and the Corner Cadet® in reducing shop labor. Three years in development brings to the trade a machine that can handle any TDC®/TDF® fitting assembled on a bench. The CORNER- MATIC PLUS® automatically and effortlessly inserts and crimps TDC®/TDF® corners in seconds. Lets you do a duct section (eight corners) in about 20 seconds in any gauge, 16 through 26. Generally, tests have shown 80 ducts/hour vs. 15 ducts/hour for manual insertion.

  • Specifically designed for the fabrication of duct fittings – even your toughest inside or outside angle off-set transition fitting from 16-26
  • Insert corners in off-set fittings without needing a secondary ‘straight’ at the flange, No other corner-inserting machine can do this!
  • Fully automated – no switches or foot pedals – just push in, Cornermatic® Plus™ does the
  • Completes (8) corner inserts in roughly 20 seconds.
  • New quick loading  StrapPak™ packaging technology speeds loading of the new ‘Universal’ corner.
  • Corners feed from below the work-surface allowing a clean, unobstructed work
  • Handles tight square throat elbows and flex
  • Works with SMACNA-conforming, T-25a and T-25b flange and many other flanged duct systems, without changing
  • Three versions available, in addition to the Cornermatic PLUS® , there is the original table mount, Cornermatic PLUS® InGround, or adjustable  version, Cornermatic PLUS® Versa, that can operate at  table height or down “in-floor” for better integration with the workshop environment
  • Bring your fitting productivity up to duct section standards!

KEY FEATURES:

  • Corners are inserted square and fully crimped.
  • No need to change the crimping adjustment when inserting corners in 16 to 26 gauge ducts-all automatically and 26ga corners are tight).
  • Each quick loading box holds 80 corners-loads in ten (10) seconds
  • Corners are shipped presorted and oriented for direct loading into the magazine.
  • No need for hand sorting.
  • Push the ductwork or fitting into the flange guides and the machine automatically does the rest.
  • Adjustable legs to match most bench heights.
  • Will handle any fitting built to SMACNA standards
  • Handles particularly difficult inside angles on off-set transitions with a breeze
  • Easily handles tight square throats
  • Will do odd size fittings such as flex connectors and curbs

MACHINE SPECIFICATIONS

Flange Type: TDC® or TDF®, Gauge Range: 16 - 26 (0.63" - 0.022") (1.6mm - 0.56mm), Cycle Time: 2-1/2 seconds per corner, Air Required: 85 PSI minimum (5 to 6 BAR), Magazine Capacity: 80 corners, Electrical Requirements: 110V/1Ph/60H, Size: 24-1/8"L x 24-1/8"W x 32"H (613mm x 613mm x 812mm), Weight: 700 lbs
(318 kg).

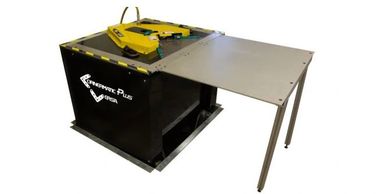

CORNERMATIC PLUS VERSA

cornermatic plus versa iowa precision mestek

The Cornermatic Plus Versa is the most flexible unit for production available. The Versa is installed with the capability of sitting on your workshop floor or in-ground, allowing for greater flexibility during production. Raising and lowering takes a simple button press that triggers the extension or retraction of a heavy-duty hydraulic scissor lift. Using the Versa in-ground is beneficial for projects involving large duct and heavier gauge fittings, while the above-ground position is ideal for fitting production.  The Cornermatic Plus inserts corners in off-set fittings without needing a secondary ‘straight’ at the flange, no other corner-inserting machine can do this!

HIGHLIGHTS

  • Adjustable Versa is designed to fabricate large and small duct fittings in one machine – including tough inside or outside angle off-set transition fittings
  • Set the Cornermatic PLUS® VERSA at floor level and slide over large duct sections and fittings to automatically insert the corners
  • With Pushbutton control, move the Cornermatic PLUS® VERSA up to operator friendly table height when fabricating small fittings
  • Access acute throats to automatically insert all 8 corner
  • StrapPak™ packaging technology enables faster loading of the new ‘Universal’ corner, or conventional TDC/TDF type corners
  • Corners are fed from a clean & unobstructed area below the work surface
  • Capable of handling tight square throat elbows and flex connectors
  • Pre-set to handle SMACNA-conforming T25-a and T25-b flanged duct systems
  • Three version available, in addition to the Cornermatic PLUS® VERSA, there is the original table mounted, Cornermatic PLUS®, or floor level, Cornermatic PLUS® InGround, that operates  “in-floor” for better integration with the workshop environment with large ducts

MACHINE SPECIFICATIONS

Flange Type: TDC® or TDF®, Gauge Range: 16 - 26 (0.63" - 0.022") (1.6mm - 0.56mm)
Mild Steel, Aluminum, and Stainless Steel corners are available, Cycle Time: 2-1/2 seconds per corner, Air Required: 85 PSI minimum (5 to 6 BAR), Magazine Capacity: 80 corners, Electrical Requirements: 110V/1Ph/60H, Size: 24-1/8"L x 24-1/8"W x 40"H (613mm x 613mm x 1016mm), Weight: 900 lbs
(410 kg).

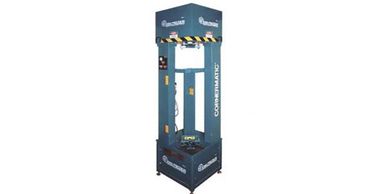

DUAL HEAD CORNERMATIC CLASSIC

dual head cornermatic classic iowa precision mestek

This CORNERMATIC® machine will operate with all widely available Cornermatic®-type corners and with Mestek Machinery’s revolutionary EZ Connector® corners for “C” and “F” flanges. If you acquire Cornermatic® brand corners from Ductmate, DuroDyne, CL Ward or Mestek Machinery, they will come either (i) oriented and stacked in the shipping carton (250 corner pieces per carton) for quick and easy loading into the 175 corner magazines feeding the top and bottom crimping heads, or (ii) in the NEW StrapPak™ – 80 corners in a double-strapped package (five (5) packages per carton) to be quickly loaded into the magazine directly from the shipping carton. The StrapPak™ eliminates the need to sort and orient the corners before installation. Other suppliers of Cornermatic®-type corners will not have this unique, time-saving feature which eliminates the need to hand-load the corners before installation. Adjustable Dual Head Cornermatic® Classic adds the feature of automatically adjusting the upper crimping head to handle duct from 4′ to 6′ in length. The Dual Head Cornermatic® Classic automatically inserts and crimps specially designed TDC/TDF® style corners in seconds. Lets you do a duct section, eight corners, in about 60 seconds with virtually no physical exertion. Compared to other methods of hand insertion and crimping, it’s a saving of 3 to 6 minutes per section of ductwork depending on size and gauge.

  • Handles duct up to 60″
  • Corners are inserted square and fully crimped.
  • No need to change the crimping adjustment when inserting corners in 18 to 26 gauge ducts,
  • CM3-DH with 16 gauge capacity optional.
  • Each quick loading magazines hold up to 175 corners.
  • Corners are shipped presorted and oriented for direct loading into the magazine.
  • No need for hand sorting.
  • Push the ductwork or fitting into the flange guides and the machine automatically does the rest.

MACHINE
Model CM3-C-DH: For TDC style flange only
Model CM3-F-DH: For TDF style flange only

Air
85 – 100 PSI (5.5 – 7 Bar)

Electrical
110VAC, 60 Hz

CAPACITY
Gauge: 18 to 26, 16 gauge optional
(.050” to .022” / 1.3mm to 0.6mm, 0.060″ / 1.52 mm optional)
Mild Steel Only

SIZE
Dimensions (L x W x H)
Model CM3-DH: 24-1/8” x 24-1/8” x 116”
(613 x 613 x 2946mm)
Model CM3-DHA: 35-3/4” x 35-3/4” x 127”
(908 x 908 x 3226mm)

Weight
Model CM3-DH: 1,400 lbs.
Model CM3-DHA: 1,800 lbs.

WHISPER-LOC

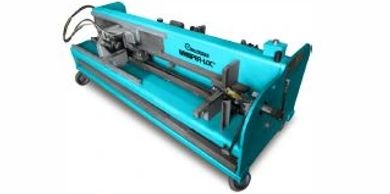

whisper loc iowa precision mestek

WHISPER-LOC SPECIFICATIONS

Capacity: 18 gauge, Duct Length: 3', 4', 5', and 6' (914mm, 1219mm, 1524mm, 1829mm), Motor: 2 HP, Voltage: 220V/1Ph/60Hz (16 Amp), Dimensions: 100"L x 35"W x 32.5"H, Weight: 1550 lbs, Other: Horizontal model available up to 10' normal duct lengths.

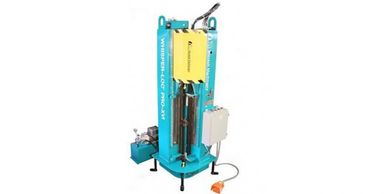

WHISPERLOC PRO-XVI

whisperloc pro xvi iowa precision mestek

The PRO-XVI is equipped with push button motor controls for quick-change duct lengths and is chain driven.

  • Closes Pittsburgh seams – whether TDC, TDF or slip and drive type duct work – in a fraction of the time
  • Adjustable from 18” to 72”
  • Motorized control moves the clamp and slide block, as a unit, for faster set up – one handed
  • Greatly reduces noise levels
  • Minimal floor space required
  • Micro-processor controlled for ease of operation
  • Low maintenance 220 V single phase 3 HP
  • Self-contained 10-gallon (38 liter) hydraulic unit
  • Requires minimal hammer over top and bottom

Dimensions: 32″L x 32″W x 102″H

Duct Length: 3′, 4′, 5′, 6′ (914mm, 1219mm, 1524mm, 1829mm)

Weight: 1,550 lbs

PLASMA LASER COIL FEED

plasma laser coil feed iowa precision mestek

The Plasma Laser Coil Feed has been designed to feed a plasma or laser-cutting table. It is comprised of a drive motor and a series of rolls to feed and remove coil set from the material. The material is advanced by the operator using an on/off switch attached to an electrical cable. This allows the operator to follow the material to proper location along the cutting table. Drive is by way of entry pinch rolls and exit pinch rolls. Straightening is accomplished with rolls located between the entry and exit rolls, which are controlled by way of a hand wheel for depth penetration. Length of feed is at the operator’s discretion, as the machine does not measure the material.

Available beading option:

Down-Bead or Up-Bead pattern is rolled into the coil as it is being fed onto the cutting table. The bead pattern is produced by bead rings that ride in grooves machined into a pair of pinch rolls with the bottom roll powered and the top roll adjustable up and down by means of a hand wheel. The bead pattern is not intended to be a half radius, but more of a rounded shallow vee to form a cross-break in the material for stiffening.

ELBOW MACHINE

elbow machine iowa precision mestek

Adding to our line of machines is the Automatic Elbow Machine. This precision machine produces high quality straight, articulated elbows from tube blanks, which can be hand turned to any angle between 0 and 90 degrees for various elbows. The control panel is angled for easier operator use. Use tubes from the Iowa Precision Tube-Matic. Optional sizes upon request.

  • Tube position controlled by two servomotor driven ball screws for accurate and consistent elbows
  • Wiper seals in push tube and arbor enclosed to protect bushings
  • Push tube connected to push plate by sealed large diameter bearing and enclosed gears
  • Tooling head is gear driven for smooth operation
  • flow control with operating program provides soft start and stop of head motor
  • Tool steel used in clamp plates and cut ring for longer life
  • Electric lube pump and reservoir to automatically lube each gore
  • Hydraulic power unit is mounted externally for easy service and maximum cooling

MACHINE SPECIFICATIONS

MODEL EMHP 3/4/5: Material Thickness: (mm) 0.0125" - 0.020" (0.32mm - 0.51mm), Diameter Range: (mm)3" - 5" (76.2mm - 127mm), Voltage: 220 or 440/3/60, Amperage: 17.5 (220V) or 9.7 (440V), Motor Size: 5 hp, Dimensions: 60" x 36" x 50", Weight: 1,550 lbs.

MODEL EMHP 4/5/6: Material Thickness (mm):  0.0125" - 0.024" (0.32mm - 0.6mm), Diameter Range (mm): 4" - 6" (101.6mm - 152.4mm), Voltage: 220 or 440/3/60, Amperage: 17.5 (220V) or 9.7 (440V), Motor Size:  5 hp, Dimensions: 60" x 36" x 60", Weight: 1,550 lbs.

MODEL EMHP 6/7/8: Material Thickness (mm): 0.0125" - 0.024" (0.32mm - 0.6mm), Diameter Range (mm): 6" - 8" (152.4mm - 203.2mm), Voltage: 220 or 440/3/60, Amperage: 17.5 (220V) or 9.7 (440V), Motor Size: 5 hp, Dimensions: 60" x 36" x 60", Weight: 1,550 lbs.

MODEL EMHP 9/16: Material Thickness (mm): .0.013" - 0.025" (0.33mm - 0.64mm)0.015" - 0.025" (0.38mm - 0.64mm), Diameter Range (mm): 9" - 16" (228.6mm - 406.3mm), Voltage: 220 or 440/3/60, Amperage: 32.0 (220V) or 18.0 (440V), Motor Size: 10 hp, Dimensions: 45" x 58" x 67", Weight: 5,200 lbs.

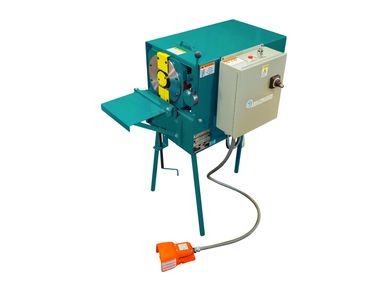

Colatch Collar Attaching Machine

colatch collar attaching machine iowa precision mestek

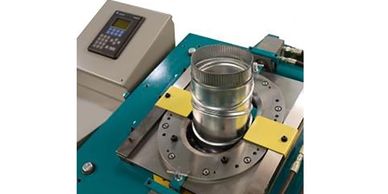

    This field-proven multi-functional machine forms a bead for the collaring operation in producing boots and other furnace fittings.

  • Expands the boot or take-off
  • Grooves the collar and boot or take-off
  • Stabilizes the collar to boot or take-off
  • 3-legged design facilitates precision leveling
  • Models for 4" through 20" diameters

Machine Specifications:

Colatch Model B- Capacity: Max. Gauge 26, Size: N/A, Other: Standard Dies 4"-5"-6"-7"-8", Collar Size- 6" Machine, Collar Diameter- 4" thru 8", Speed: N/A, Motor/Voltage: Power- 22V,1 Ph., 60Hz, Dimensions/Weight: Length: 41", Width: 49" w/ legs, Height: 23" w/out legs, Weight: 725 lbs.

Colatch Model C- Capacity: Max. Gauge 24, Size: N/A, Other: Standard Dies 8"-9"-10"-11"-12", Collar Size- 6" Machine, Collar Diameter- 8" thru 12" (8"-14" also available), Speed: N/A, Motor/Voltage: Power- 220V, 3 Ph,. 60Hz, Dimensions/Weight: Length: 52", Width: 55" w/ legs, Height: 35" w/out legs, Weight: 1,350 lbs.

Colatch Model D- Capacity: Max. Gauge 22, Size: N/A, Other: Standard Dies 14"-16"-18"-20", Collar Size- 6" Machine, Collar Diameter- 14" thru 20", Speed: N/A, Motor/Voltage: Power- 220V, 3Ph., 60Hz, Dimensions/Weight: Length: 60", Width: 58" w/ legs, Height: 38" w/out legs, Weight: 1,500 lbs.
