EMPIRE MACHINERY EM-PRO EMT-7R POWER ROTARY MACHINE
EMPIRE MACHINERY EM-PRO EMT-7R POWER ROTARY MACHINE
EMPIRE MACHINERY EM-PRO EMT-7R POWER ROTARY MACHINE
NEW and IMPROVED, EM-PRO EMT-7R Power Rotary/Swaging Machine is, now Easily Retrofittable in the Field from One Configuration to Another. Newly designed electrical panel with a plug-and-play circuit board allows the base machine to be upgraded in the field, all you need is a wrench and a screwdriver to install the upgrades.

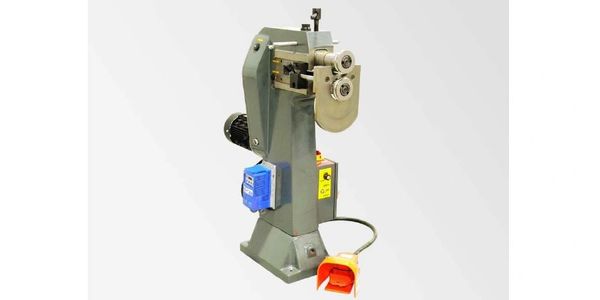

NEW EMT-7R (Old CMZ-7R) Power Swaging/Rotary Machine
(Includes ONE SET – 3/8″ Single Bead Rolls)
- 11″ Throat Depth
- 14 Gauge Mild Steel Beading Capacity
- Based on a standard set or rolls, top speed is 87 RPM which equates to 73.25 surface feet per minute
- Manual Hand Operated Top Shaft Control
- Solid Cast-Iron Frame and Large Oil Bath Gearcase
- Most available options are plug and play and can easily be retrofitted in the field
- Shipping Dimensions: 42″ x 35″ x 57″ (Varies depending on options ordered)
- Shipping Weight: Approx. 600 Lbs. (Varies depending on options ordered)
- 1 HP Motor: 110V, 220V 1PH or 3PH, 440V
- Weight: 400 lbs

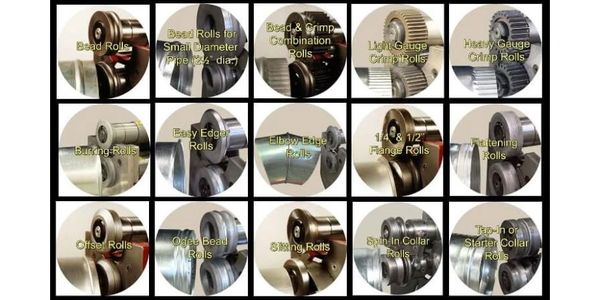

AVAILABLE ROLL SETS FOR EMT-7R
EMPIRE MACHINERY EM-PRO EMT-7R POWER ROTARY MACHINE
EMPIRE MACHINERY EM-PRO EMT-7R POWER ROTARY MACHINE
37001- Single Bead Rolls (3/16″)
37002Single Bead Rolls, (1/4″)
37003- Single Bead Rolls, (1/2″)
37004- 3/8″ Single Bead Rolls for Small Diameter Pipe (Minimum Pipe Diameter 2-5/8″)
37005- 1/4″ Ogee Bead Rolls (Double Bead, One Up and One Down)
37006- 3/8″ Bead (Combination Bead & Crimp for Light or Heavy Gauge Crimp Rolls)
37007- Crimping Rolls Heavy Gauge (16GA/18GA) (Maximum 1-1/2″ Wide Crimp)
37008- Crimping Rolls Light Gauge (20GA & Lighter) (Maximum 1-1/2″ Wide Crimp)
37009- 1/4″ 90 Degree Flanging Rolls (Pipe Stays in Horizontal Position)
37010- 1/2″ 90 Degree Flanging Rolls (Flange 16 GA Stainless), (Pipe Stays in Horizontal Position)
37011- Offset Rolls
37012- Burring Rolls
37013- Flattening Rolls (Smooth Face)
37014- Flattening Rolls (Knurled Face)
37015- Spin-In Collar Roll Set (22GA & lighter) (Makes perfectly round spin-ins with deep pocket)
37016- Conical Roll for Spin-In Collar Roll Set (Must have Spin-In Collar Roll Set)
37017- Slitting Rolls
37018- Tap In (Starter Collar) Rolls
37019- Elbow Edging (Adjustable Elbows) (Straight V Style)
37020- Elbow Edging (Adjustable Elbows) (Brown Boggs Style)
37021- Saddle Tap Rolls (MUST ORDER OPTIONAL FORWARD/REVERSE FOOT PEDAL ASSY)
